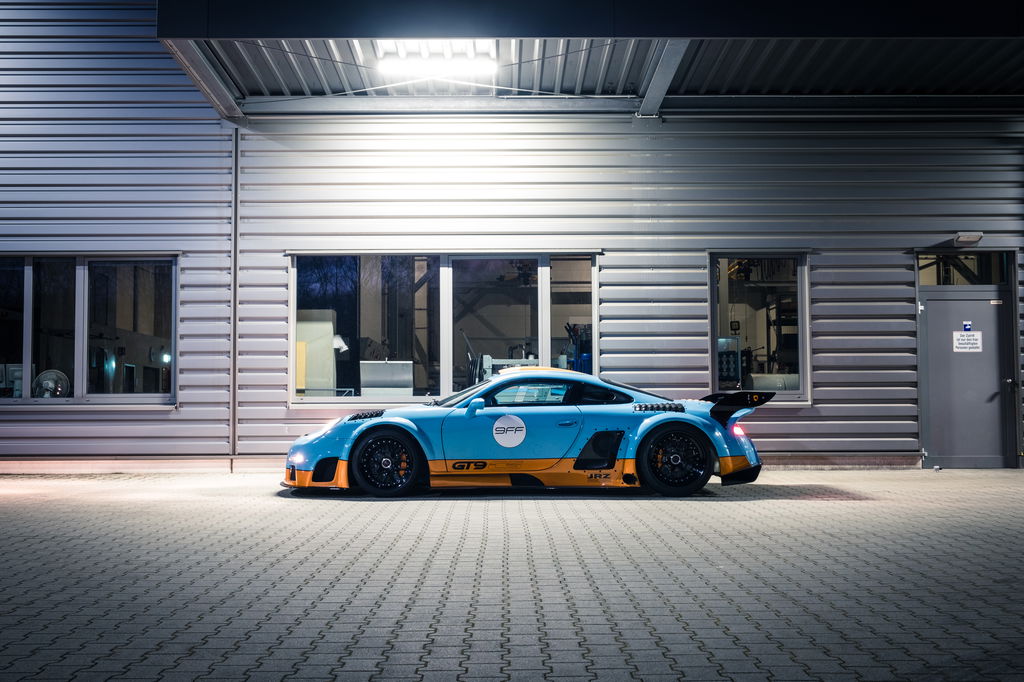

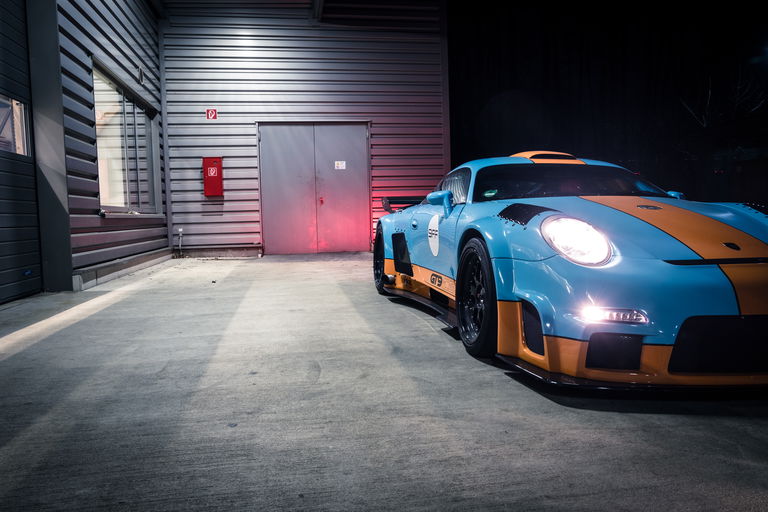

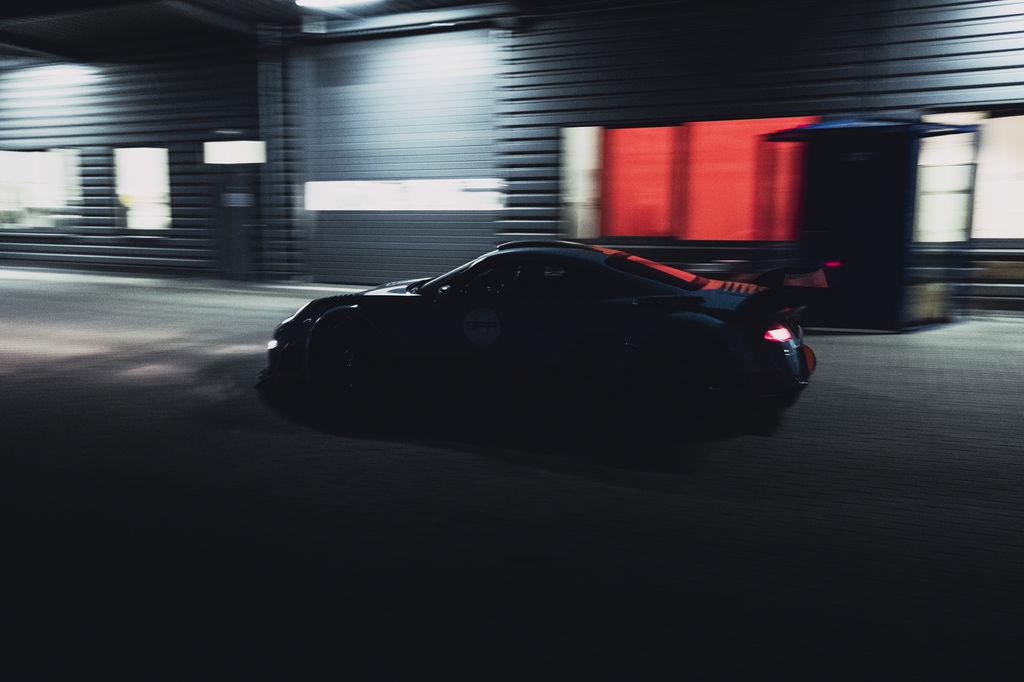

Porsche 911 Modified

The vehicle in detail

VEHICLE

• 2-seater supercar
• Mid-engine construction

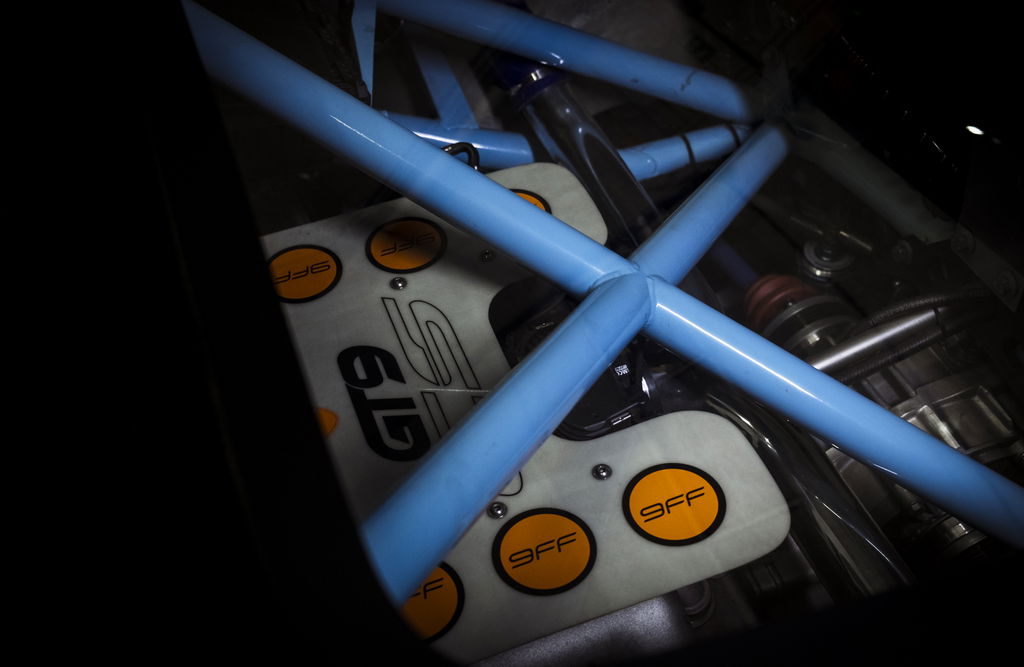

• Carrying 9ff tubular frame constructionIntegrated roll cage with door crosses for high security
• Trunk in box construction for "crash safety"
• 1-piece lightweight carbon fiber body
• Radlaufverbreiterungen front and rear

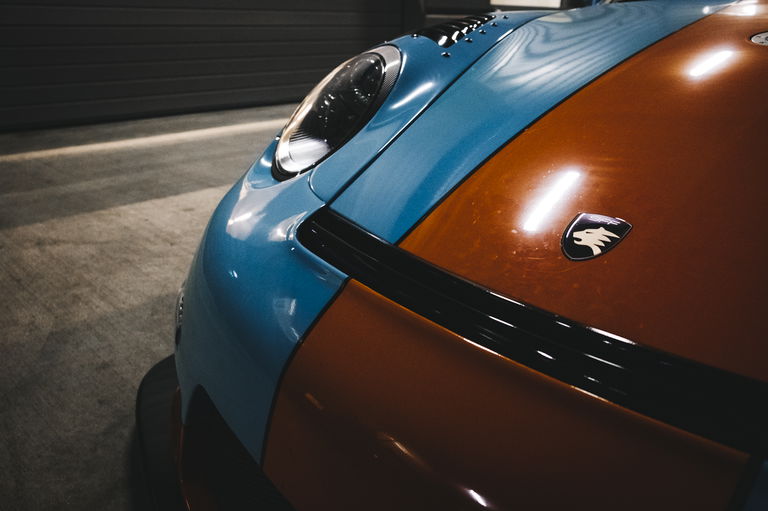

• Carbon fiber front hood
• Carbon fiber doors with side impact protection
• Windscreen made of laminated safety glass
• Side and rear window made of Makrolon Plexiglas + 9FF

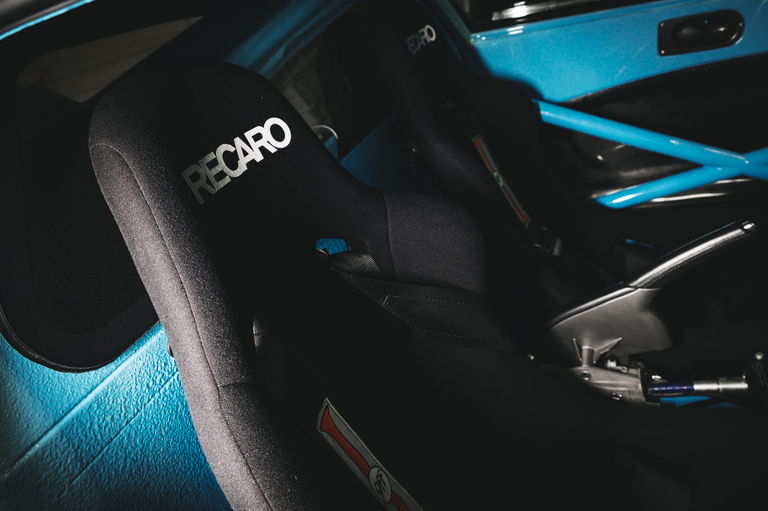

• Recaro lightweight bucket seats
• 9FF air inlets / outlets in carbon fiber

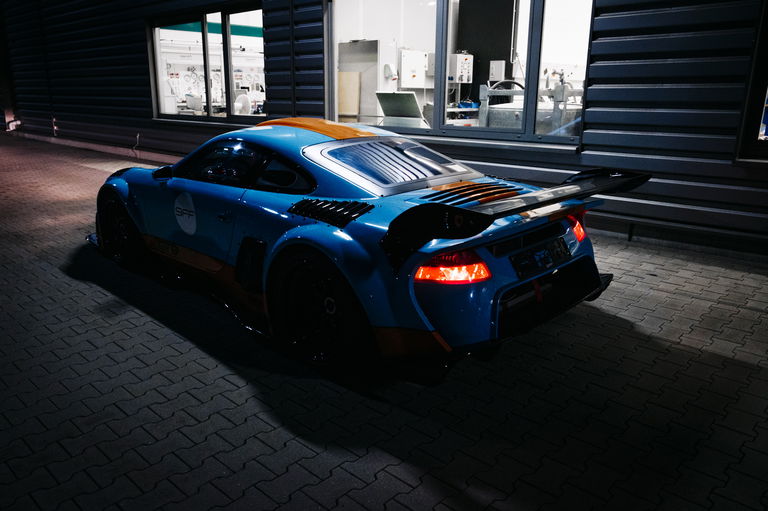

• Sight carbon fiber rear wing
• 4-part smooth underbody with integrated front lip and rear diffuser
• Curb weight: 1,240 kg
• Height: 1,100 mm

ENGINE

• 9FF 3.6 liter bi-turbo boxer engine with 24 valves and DOHC
• 9FF steel connecting rod long version
• 9FF crankshaft for high speed
• Engine block pinned and reinforced
• reinforced connecting rod bearings
• Cylinder heads with) FF CNC machining of channels, seats and valves
• 4x "sharp" 9FF camshafts for "VarioCamPlus"
• 24x 9FF valve springs reinforced with plates
• 6x Bosch 650 g / min Einspitzdüsen
• modified fuel pressure regulator
• 9FF Teflon cable set gasoline system
• 2x Bosch Motorsport petrol pumps controlled via ECU
• 2x KKK turbocharger K26-30.80 with BILLET compressor wheel
• Changed turbocharger suspension for different position
• 9FF Teflon kit for turbocharger oil supply
• Changed turbocharger oil collector with wiring harness
• Inerne Waste-Gates
• 9FF fan header stainless steel 48mm
• 9FF flap exhaust system "loud / quiet" stainless steel polished
• 9FF tailpipes diameter 80 / 80mm polished stainless steel
• 2x 200cell metal motorsports catalysts
• 74mm throttle
• 9FF aluminum charge air cooler 100mm
• 9FF air filter boxes
• Magnified HFM system for air mass measurement
• Bosch 3bar MAP sensor
• 9FF large diameter intake pipes
• 9FF stainless steel Y-tube 60mm polished
• NGK Motorsport spark plugs with 9FF special heat value
• Tilton 4 discs clutch 1900Nm
• Castrol RS 10W-60 engine oil
• BMC air filter cartridges
• SYVECS engine control unit

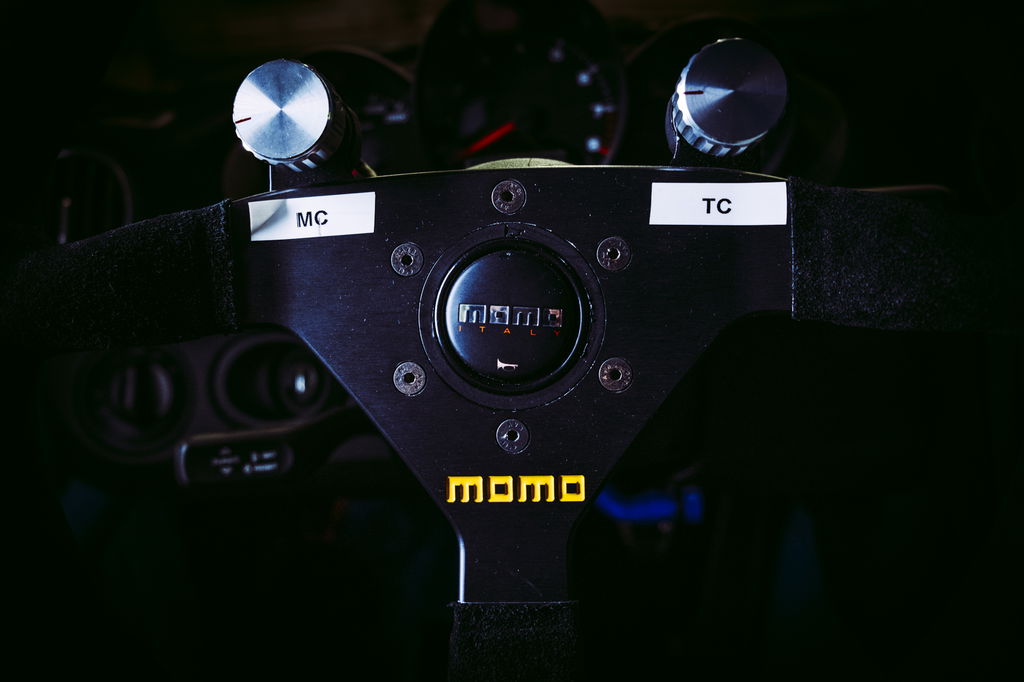

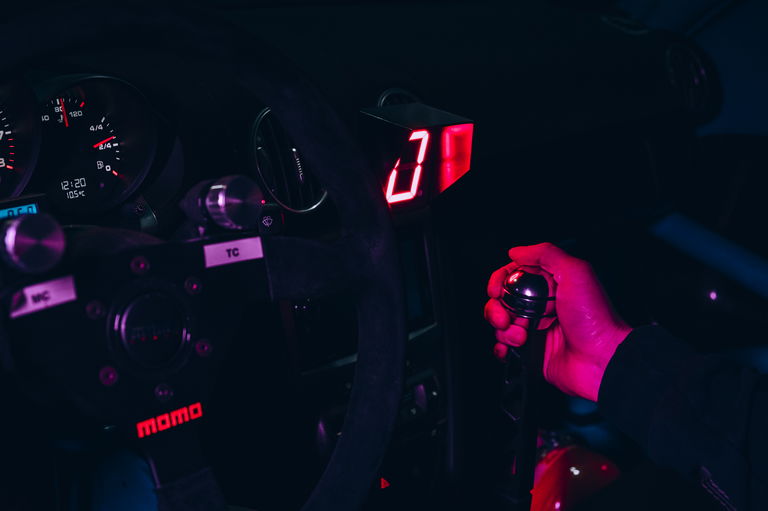

• With launch control, traction control adjustable, brake boost, map switch
• 9FF ECU programming with 6 levels selectable via switch

LANDING GEAR

• Height adjustable 9FF / JRZ suspension
• Aluminum shock absorber with reservoir
• 3-way adjustable damper
• 60mm double race springs
• Rigid aluminum dome bearings
• Reinforced control arms VA HA
• Front axle "McPherson" system
• Rear axle with push-rod actuation
• All axle struts with metal joint bearings
• VA and HA with 4-way adjustable stabilizer
• Electrohydraulic power steering

Data from https://www.9ff.com/
